ZBS Export Series Stainless Steel Solenoid Valve
manufacturer: Shanghai MeiYan Yi Pump & Valve Co., Ltd.
Eml: sales@1bengfa.com
Tel: +86 (21) 5640 2009
Mob: +86 138 1691 3072（WeChat Same Account）
product drawing
ZBS export series stainless steel solenoid valves
structural features
Piston structure, durable wear-resistant, low temperature, no noise, zero leakage
rapid action response, high-frequency German technology, export series, reliable quality.
working pressure scope：±0.1Mpa、1.6Mpa、2.5Mpa、4.0Mpa
Medium contains impurities, the filter must be installed before the valve (filter ≥ 80 mesh / cm2); and no solidification or crystal phenomena
type indication：BZBS-1K，B： explosion-proof；-1；≤80℃；-K normally open；-X signal；-S： manual
product applications
It is applied to medical machinery, food machinery, drying equipment, vacuum equipment, electroplating and painting, distillation machines, oil filter, oil chemical and other industry.
install dimensions
Dimensions & constructral diagram

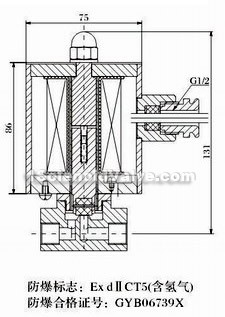

ZBS export series stainless steel solenoid valve constructral diagram(pic1)

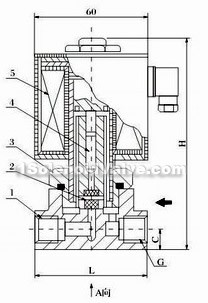

ZBS export series stainless steel solenoid valve constructral diagram(pic2)
ZBS export series stainless steel solenoid valve constructral diagram(pic3)
ZBS export series stainless steel solenoid valve constructral diagram(pic4)
1.阀体 2.阀芯 3.阀盖 4.弹簧 5.线圈
| type | Sub-step direct-acting piston type | interface | internal thread |
| material | stainless steel | diameter | DN1~15 |
| pressure | normal pressure 0~1.6Mpa | temperature | high temperature-20~220℃ |
| usage | export, explosion-proof, micro-type, signal, normally open, fire, zero-pressure start, vacuum, high pressure | ||
| medium | Air, steam, water, oil, gas / natural gas, corrosive fluid, neutral fluids and gas | ||
technical parameter
| operating mode | normally closed： open when power on, close when power off | ||||
| normally open： close when power on, open when power off（后加“-K”add “K”to indicate after the type） | |||||
| ↓parameter type | ZBS-1/ZBS-2 | ||||
| medium temperature[℃] | 1type≤80℃/? 2type≤220℃ | ||||
| medium（1type） | Water, nitrogen, kerosene, diesel fuel and other air vacuum ozone-ethylene glycol | ||||
| medium（2type） | steam,hot-water,hot-oil,hot-air and other high temperature liquid or gas | ||||
| diameter（mm） | 1~3 | 4~6 | 8~10 | 12~15 | |
| connection dimensions（G） | 3/8 | 1/2 | 3/4 | 1 | |
| pressure（Mpa） | 0~1.6 | ||||
| power | AC：20W DC：30W | ||||
| voltage deviation | allowable floating ±10% | ||||
| body material | stainless steel | ||||
| sealing material | NBR/ FKM/ PTFE | ||||
| Environment temperature（℃） | -20~60℃ | ||||
| connecting mode | internal thread | ||||
| Electrical connections | Junction Box Cable socket, protection level IP65 | ||||
| applicable voltage | AC:220V 50Hz/60Hz DC:24V other according to requirement | ||||
| special selection | BZBS explosion-proof level ExmI/IIT4(Poured seal-type) dIIBT4 dIICT5 With hydrogen | ||||
| ZBS-X Signal feedback solenoid valve open and close and medium flow switch signal | |||||
| ZBS-S manual open and close to save bypass | |||||
| installation prompting | prior to adopt the coil vertically upwards and it can also be installed according to requirement | ||||
| remarks | Valve fully open or close needs at least 0.05Mpa pressure | ||||
