Cryogenic Magnetic Valve Magnetic Valve
manufacturer: Shanghai MeiYan Yi Pump & Valve Co., Ltd.
Eml: sales@1bengfa.com
Tel: +86 (21) 5640 2009
Mob: +86 138 1691 3072（WeChat Same Account）
product drawing
V2A minitype magnetic valves
sturctural features
Compact design, exquisite beauty piston structure, durable wear
using special Low-temperature-resistant material. German technology, export series, reliable quality.
Medium contains impurities, the filter must be installed before the valve (filter ≥ 80 mesh / cm2); and no solidification or crystal phenomena
type indication：ZCLD-F，-F:flange connection，internal thread can be omit
prodcut application
Cryogenic Solenoid Valve is widely used in liquid nitrogen, liquid ammonia, low-temperature refrigeration equipment, etc and related industries automatic control.
install dimensions

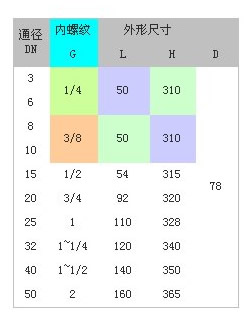

Dimensions & constructral diagram

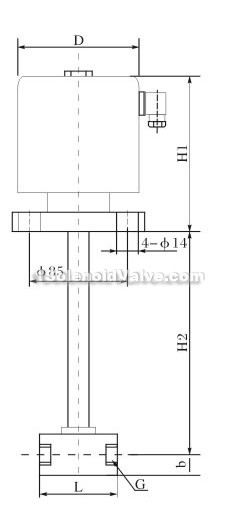

V2A minitype dimension drawing
| type | pilot | interface | internal thread/flange |
| material | stainless steel | diameter | DN1~50 |
| pressure | normal pressure0.1~1.6Mpa | temperature | -198℃~80℃ |
| performance | export,explosion-proof | ||
| medium | Neutral fluids and gases | ||
technical parameter
| diameter（mm） | 3 | 6 | 8 | 10 | 15 | 20 | 25 | 32 | 40 | 50 |
| connecting dimension（G） | 1/4 | 3/8 | 1/2 | 3/4 | 1 | 1~1/4 | 1~1/2 | 2 | ||
| pressure（Mpa） | 0~1.6 | 0.03~1.6 | ||||||||
| power | AC:40W DC:45W | AC:44W DC:30W | ||||||||
| voltage deviation | allowable floating±10% | |||||||||
| body material | stainless steel | |||||||||
| sealing material | metal hard sealing | |||||||||
| Environement temperature（℃） | -20~60℃ | |||||||||
| connecting mode | internal thread/flange | |||||||||
| electric connection | Junction Box Cable socket, protection level IP65 | |||||||||
| applicable voltage | AC:220V 50Hz/60Hz DC:24V other according to requirement | |||||||||
| special selection | Explosion-proof solenoid valves used for flammable and explosive situations level dIIBT4 | |||||||||
| install indication | ZCLD-F flange connection | |||||||||
| remarks | prior to adopt the coil vertically upwards and it can also be installed according to requirement | |||||||||
