Two Position Three Way Solenoid Valve
manufacturer: Shanghai MeiYan Yi Pump & Valve Co., Ltd.
Eml: sales@1bengfa.com
Tel: +86 (21) 5640 2009
Mob: +86 138 1691 3072（WeChat Same Account）
product drawing

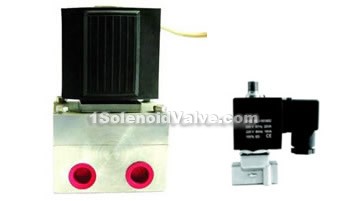

Two Position Three Way Solenoid Valves
one entry two exit: When the solenoid valve coil is energized, the first path of the exit medium end opens, the second road closes; When the solenoid valve coil is powered off, the first path of the exit medium end closes, the second road opens;
two entry one exit: When the solenoid valve coil is energized, the first path of the exit medium end opens, the second road closes; When the solenoid valve coil is powered off, the first path of the exit medium end closes, the second road opens; (the one-way valve should be installed before the two entry ends of the valve)
one entry one exit: When the solenoid valve coil is energized, the interface 1 leads to the interface 2, interface 3 closes; when the solenoid valve coil is powered off, the interface 1 closes, interface 2 leads to interface 3;
Applications: ship heavy industry, petrochemicals, electric power equipment, medical equipment, industrial furnaces, drying equipment, fire fighting equipment, HVAC, cleaning equipment, electroplating, painting, food industry, vacuum tubes road, water siphon system.
technical parameters
type and specifications：DN1～DN500
suitable pressure：0.02～20MPa
applicable medium： Gas, water, oil, steam, cooling agents, corrosive fluids
mediumtemperature：-200～+200℃
mediumviscosity： less than ５０ＣＳt（it is required to customize when it is bigger）
Protection performance: waterproof, explosion-proof, corrosion (except for cast iron body)
Explosion-proof mark：ExdⅡCT5
valve materials：304、316、铸铁cast iron
control mode： one entry two exit, two entry one exit, one entry one exit,
power voltage：ＤＣ３～１２７Ｖ ＡＣ３６～３８
０Ｖ
connection mode：internal thread、external thread、flange
remarks：
1 The external dimension and the interface dimension should be notified by telephone or drawing fax according to the required products.
2。If you have specical requirement, it can be customized.
