Three-way Explosionproof Magnetic Valve
manufacturer: Shanghai MeiYan Yi Pump & Valve Co., Ltd.
Eml: sales@1bengfa.com
Tel: +86 (21) 5640 2009
Mob: +86 138 1691 3072（WeChat Same Account）

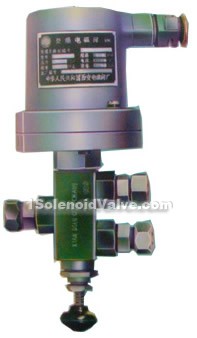

product drawing
Three-way explosionproof magnetic valves
BZCPE (H) - 6 ~ 8 flameproof type three-way magnetic valve is two position three way automatic valve, can be used for factory which has Ⅱ kind C class, the highest temperature classes for T3 inflammable gas occasions, the national instruments explosion-proof safety inspection and supervision and inspection with <<GB3836.1—2000>>;<<GB3836.2—2000>> standard

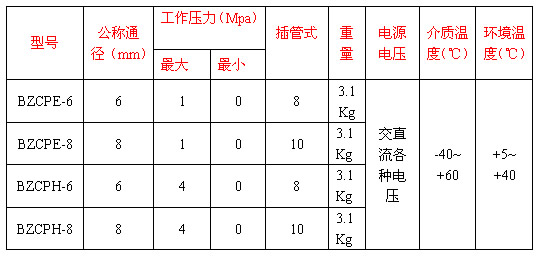

| type | Nominal diameter(mm) | Working pressure(mpa) | Bayonet type | weight | Powersupply voltage | Medium temperature(℃) | Environment temperature(℃) | |
| MAX. | Min. | |||||||
| BZCPE-6 | 6 | 1 | 0 | 8 | 3.1kg | AC/DC any king of voltage | -40---+60 | +5--+40 |
| BZCPE-8 | 8 | 1 | 0 | 10 | 3.1kg | |||
| BZCPH-6 | 6 | 4 | 0 | 8 | 3.1kg | |||
| BZCPH-8 | 4 | 0 | 10 | 3.1KG | ||||
