RSP Pilot Magnetic Valve
manufacturer: Shanghai MeiYan Yi Pump & Valve Co., Ltd.
Eml: sales@1bengfa.com
Tel: +86 (21) 5640 2009
Mob: +86 138 1691 3072（WeChat Same Account）
product drawing
RSP pilot magnetic valves(pic1)
RSP pilot magnetic valve(pic2)
RSP pilot magnetic valve(pic3)
RSP pilot magnetic valve(pic4)
applicable medium：
liquid, water, hotwater, gas, oil,etc.
performance
●Pilot diaphragm-type structure, low function.
●Protection diaphragm structure design, lifetime extend twofold
●pipework type can be installed at any angle， you had better put the leveling pipe connecting coil upward to strengthen lifetime 。
●coil protection rank IP65
Dimensions & constructral diagram
RSP pilot magnetic valve constructral diagram(pic1)
RSP pilot magnetic valve constructral diagram(pic2)
external dimensions
| specification type | RSP-10 | RSP-15 | RSP-20 | RSP-25 | RSP-35 | RSP-40 | RSP-50 |
| length (A) | 66.5 | 66.5 | 75 | 96 | 131 | 131 | 165 |
| width(B) | 48 | 48 | 58 | 70 | 96 | 96 | 120 |
| height(C) | 112.5 | 112.5 | 118 | 131 | 146 | 146 | 167 |
| connecting thread（D） | 3/8〞 | 1/2〞 | 3/4〞 | 1〞 | 11/4〞 | 11/2〞 | 2〞 |

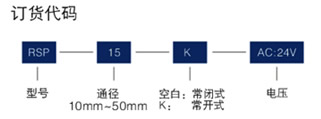

specification parameter
| typespecification type | RSP-10 | RSP-15 | RSP-20 | RSP-25 | RSP-35 | RSP-40 | RSP-50 |
| connecting diameter PT | 3/8” | 1/2” | 3/4” | 1” | 11/4” | 11/2” | 2” |
| usage fluid | water,filterair(oil-feed or non-oil-feed),liquid, light oil, liquid gas | ||||||
| material of body | forge brass or USU316 stainless steel | ||||||
| acting model | pilot | ||||||
| type | normal close or normal open type（K） | ||||||
| flow bore diameter mm | 13mm | 13mm | 20mm | 25mm | 35mm | 40mm | 50mm |
| CVvalue | 4.5 | 4.5 | 7.6 | 12 | 22 | 30 | 48 |
| applicable pressure | normal close：0.5-13kg/cm2 normal open：0.5-8kg/ cm2 | ||||||
| max.compression resistance | 17 kg/cm2 | ||||||
| diaphragm material | standard：NBR option：VITON、EPDM | ||||||
| temperature range | -10℃～80℃（130℃） | ||||||
| applicable voltage range | ±10% voltage：AC220V AC110V DC24V DC12V other voltage can be customized | ||||||
