RSK Normal Open Minitype Magnetic Valve
manufacturer: Shanghai MeiYan Yi Pump & Valve Co., Ltd.
Eml: sales@1bengfa.com
Tel: +86 (21) 5640 2009
Mob: +86 138 1691 3072（WeChat Same Account）
product drawing

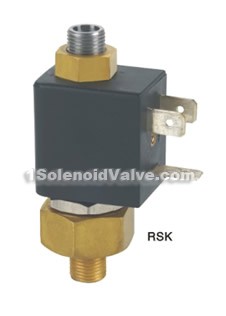

RSK normal open minitype magnetic valves

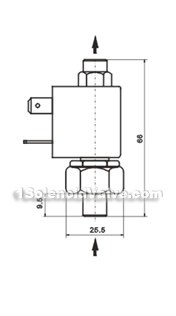

Dimensions & constructral diagram
RSK normal open minitype magnetic valve constructral diagram
| RSK minitype normal open magnetic valve，G1/8〞 technical parameter： applicable medium： water, air, oil medium temperature：-10~130℃ acting model： direct-acting working pressure：0~14kgf/cm2 body material： brass(forge) seal element material： EPDM |
coil protection coefficient： plastic-seal coil IP65 G thread connecting ：1/8〞 flow bore diameter ：1.5mm CVvalue：0.09 voltage：220VAC/50HZ 10VA； DC24V：7W； float up or down ±10%， other voltage can be customized。 |
