RSC Water Fountain Series Magnetic Valve
manufacturer: Shanghai MeiYan Yi Pump & Valve Co., Ltd.
Eml: sales@1bengfa.com
Tel: +86 (21) 5640 2009
Mob: +86 138 1691 3072（WeChat Same Account）
product drawing
RSC water fountain series magnetic valves(pic1)
RSC water fountain series magnetic valves(pic2)

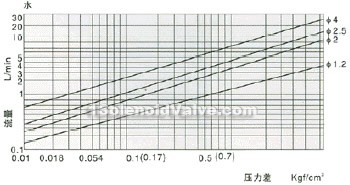

RSC flow chart
applicable medium ： air,gas
Dimensions & constructral diagram
RSC water fountain series magnetic valve constructral diagram(pic1)
RSC water fountain series magnetic valve constructral diagram(pic2)
RSC water fountain series magnetic valve constructral diagram(pic3)
product specification
| type | RSC-1 | RSC-2 | usage voltage range | ±10% | |
| usage fluid | water,gas | power | AC:220V；6.8VA DC：24V；5W | ||
| acting model | direct acting | rated voltage | AC:220V 110 24 DC：24 12 | ||
| type | normal close | body material | PP+FIBER GLASS | ||
| flow bore diameter mm | 2.5 | oil-seal material | EPDM | ||
| CVvalue | 0.21 | heat-resisting grade | GLASS B 130℃ | ||
| connecting size G | 1/8＂ | 1/4＂ | continuous usage | 100% | |
| usage pressure Mpa | 0～0.8 | reaction time | 6～20millisecond | ||
| working temperature ℃ | 0～100 | lead length | 30cm | ||
material and name of main parts
| No. | name | material |
| 1 | body | PP+FIBER GLASS |
| 2 | sealing component | EPDM |
| 3 | move iron core | IJ117 |
| 4 | static iron core | IJ117 |
| 5 | set screw | stainless steel |
| 6 | magnetic plug | special copperline H grade |
| 7 | part magnet | red copper |
