PS-J Series Stainless Steel Steam Magnetic Valve

manufacturer: Shanghai MeiYan Yi Pump & Valve Co., Ltd.
Eml: sales@1bengfa.com

Tel: +86 (21) 5640 2009
Mob: +86 138 1691 3072(WeChat Same Account)

product drawing

PS-J series stainless steel steam magnetic valves(pic1)
PS-J series stainless steel steam magnetic valves(pic1)
PS-J series stainless steel steam magnetic valve(pic2)
PS-J series stainless steel steam magnetic valve(pic2)
PS-J series stainless steel steam magnetic valve(pic3)
PS-J series stainless steel steam magnetic valve(pic3)

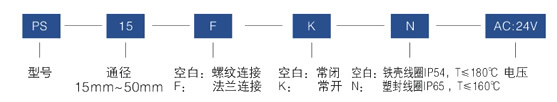

order code

Dimensions & constructral diagram

PS-J series stainless steel steam dimension drawing(pic1)
PS-J series stainless steel steam dimension drawing(pic1)
PS-J series stainless steel steam dimension drawing(pic2)
PS-J series stainless steel steam dimension drawing(pic2)

technical parameter

type PS-15J PS-20J PS-25J PS-32J PS-40J PS-50J PS-25JF PS-32JF PS-40JF PS-50JF
connecting model G1/2″ G3/4″ G1″ G1 ″ G1 ″ G2″ flange flange flange flange flange flange
diameter mm 15 20 25 32 40 50 25 32 40 50
Cvvalue 4.5 7.6 12 22 30 48 48 22 30 48
length L mm 70 75 94 111 122 167 167 140 148 182
height H mm 135 142 152 155 166 184 184 201 210 230
medium temperature -5~180℃
working pressure(pressure difference) kgf/c㎡ normal close:0.4~16        normal open:0.4~10
max.compression resistance kgf/c㎡ 20
rated voltage 220VAC;/50HZ 22VA; 110VAC/50HZ 19VA; DC24 10W; DC12 9W; float up or down ±10%; other voltage can be customized
PS-J series stainless steel steam magnetic valveG1/2〞~G2 flange type
applicable medium: steam. Air, liquid , oil
medium temperature:-5~180℃
acting model: pilot type
working pressure:normal close type:0.4~16kgf/cm2
                    normal open type:0.4~10kgf/c㎡



body material: stainless steel(precision casting)
piston seal, seal material:PTFE
coil protection factor:iron shell coil IP54
special order:
※if you choose (Viton)diaphragm, please mark out V,medium the highest temperature of the medium can reach 150℃;if you choose (EPDM)diaphragm, please mark out E,medium the highest temperature of medium can reach 110℃。
※if working pressure 25 kgf/c㎡ is required, please mark it out in the order.。
