2W Two Way Stainless Steel Direct-Acting Magnetic Valve
manufacturer: Shanghai MeiYan Yi Pump & Valve Co., Ltd.
Eml: sales@1bengfa.com
Tel: +86 (21) 5640 2009
Mob: +86 138 1691 3072(WeChat Same Account)
product drawing
2W-160-15J
02W-025-08J
2W-400-40JF
applicable medium:
liquid, water, hotwater, gas, oil, mashgas etc.
Dimensions & constructral diagram
2W two way stainless steel direct-acting magnetic valve constructral diagram(pic1)
2W two way stainless steel direct-acting magnetic valve constructral diagram(pic2)

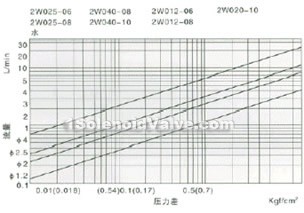

external specification
type | A | B | C | D | K(PT) |
2W025-06 | 66 | 30.3 | 75 | 40.5 | 1/8〞 |
2W025-08 | 66 | 30.3 | 75 | 40.5 | 1/4〞 |
2W040-08 | 66 | 30.3 | 75 | 40.5 | 1/4〞 |
2W040-10 | 74 | 32.2 | 85.5 | 52.5 | 3/8〞 |
2W160-10 | 101.5 | 57 | 117 | 69 | 3/8〞 |
2W160-15 | 101.5 | 57 | 117 | 69 | 1/2〞 |
2W200-20 | 107 | 57 | 123.5 | 73 | 3/4〞 |
2W250-25 | 111.5 | 73.5 | 134.5 | 99 | 1〞 |
2W350-35 | 140 | 90 | 170 | 119 | 11/〞4 |
2W400-40 | 142 | 95 | 172 | 123 | 11/2〞 |
2W500-50 | 172 | 123 | 209 | 168 | 2〞 |
