2W Two Way Direct-Acting Magnetic Valve
manufacturer: Shanghai MeiYan Yi Pump & Valve Co., Ltd.
Eml: sales@1bengfa.com
Tel: +86 (21) 5640 2009
Mob: +86 138 1691 3072（WeChat Same Account）
product drawing
2W-160-15
2W-400-40J
2W-025-08
2W-160-15K
applicable medium：
liquid, water, hotwater, gas, oil, gas etc.

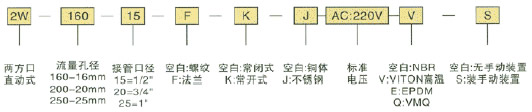

order code
remarks
1.If it is used on the food machinery and drinking water, food-grade silastic material PYMQ can be put forward in the order
2.install manual equipment, you can manually operate value switch under the outage or emergency conditions
3.flange-connection can be put forward in the order
Dimensions & constructral diagram
internal structure and main parts magnetic valve constructral diagram(pic1)
internal structure and main parts magnetic valve constructral diagram(pic2)
specification parameter
| type | 2W025- 06 |
2W025- 08 |
2W040- 08 |
2W040- 10 |
2W160- 10 |
2W160- 15 |
2W200- 20 |
2W250- 25 |
2W350- 35 |
2W400- 40 |
2W500- 50 |
| useful fluid | gas, water, oil, gas, liquid gas, natural gas, coal gas | ||||||||||
| acting model | direct-acting | ||||||||||
| type | normal close or normal open type | ||||||||||
| flow bore diameter mm | 2.5 | 4 | 16 | 20 | 25 | 35 | 40 | 50 | |||
| CVvalue | 0.23 | 0.6 | 4.8 | 7.6 | 12 | 24 | 29 | 48 | |||
| connecting size G | 1/8 | 1/4 | 1/4 | 3/8 | 3/8 | 1/2 | 3/4 | 1 | 11/4 | 11/2 | 2 |
| usage fluid viscosity | Below 20CST | ||||||||||
| usage pressure Kg/cm2 | normal close：0∽10 normal open：0∽8 | ||||||||||
| max. compression resistance Kg/cm2 | 12 | ||||||||||
| working temperature ℃ | -5∽80 special type -10∽120 | ||||||||||
| usage voltage range | ±10% | ||||||||||
| body material | forgr brass and stainles steel 304， stainless steel plus“J” behind the type | ||||||||||
| oil-seal material | NBRor ITON、EPDM、VMQ | ||||||||||
| rated voltage V | AC:380、220、110、36 DC:220、110、36、24、12 | ||||||||||
