2L Steam Magnetic Valve
manufacturer: Shanghai MeiYan Yi Pump & Valve Co., Ltd.
Eml: sales@1bengfa.com
Tel: +86 (21) 5640 2009
Mob: +86 138 1691 3072（WeChat Same Account）
product drawing
2l steam magnetic valves(pic1)
2l steam magnetic valve(pic2)

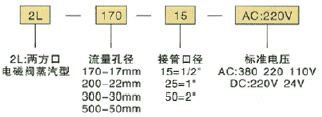

order code
remarks
other pressure is required, please contact with factory. if stainless steel is required， please mark out in the order， plus J behind the type，such as：2L-170-20-J
applicable medium： steam,gas.water
flow curve chart
2L170-15 2L200-25 2L300-25 2L500-50 2L170-20 2L300-40 saturation steam
Dimensions & constructral diagram
2l steam dimension drawing
product specification
| type | 2L170-10 | 2L170-15 | 2L170-20 | 2L200-25 | 2L350-35 | 2L300-40 | 2L500-50 | ||
| sign |  |
||||||||
| usage fluid | steam,water,air | ||||||||
| acting model | conductive（pilot type） | ||||||||
| type | normal close type | ||||||||
| flow bore diameter mm | 17 | 22 | 30 | 50 | |||||
| CVvalue | 4.8 | 12 | 20 | 48 | |||||
| connecting size G | 3/8〞 | 1/2〞 | 3/4〞 | 1〞 | 11/4〞 | 11/2〞 | 2〞 | ||
| useful fluid viscosity | Below 20CST | ||||||||
| useful pressure Kg/cm2 | steam,water,air：0.5∽15 steam,water,air：1∽15 | ||||||||
| max. compression resistance Kg/cm2 | 20 | ||||||||
| working temperature ℃ | -5∽180（US工作working temperature -5∽200℃） | ||||||||
| useful voltage range | ±10% | ||||||||
| body material | brass and stainless steel， plus “J”behind stainless steel type | ||||||||
| oil-seal material | PTFE | ||||||||
| external dimensions L×H | 82×146 | 82×146 | 82×146 | 91×162 | 112×185 | 112×185 | 165×225 | ||
