PS Steam Magnetic Valve
manufacturer: Shanghai MeiYan Yi Pump & Valve Co., Ltd.
Eml: sales@1bengfa.com
Tel: +86 (21) 5640 2009
Mob: +86 138 1691 3072（WeChat Same Account）
product drawing
PS steam magnetic valves(pic1)
PS steam magnetic valve(pic2)
applicable medium：
steam,air,liquid,oil

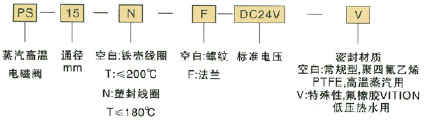

order code
product function
It is suitable for steam as heating medium heater, radiator, dryer and fabric dyeing machine, fruits and vegetables dryer, etc., complete sets of equipment for two automatic steam lines and remote hige switching, and widely used in petroleum, chemical, metallurgical, textile, food, medical, environmental protection, and other industrial sector management unit, realize temperature control, energy saving and program control automation.
Structure characteristics
1, pilot secondary open valve structure, small volume, less power.
2, between pilot valve and the main valve, good insulation and buffer component.
3, choose good corrosion resistance, high magnetic materials, piston moulding ptfe valve sealing mouth, performance, long life.
Dimensions & constructral diagram
internal structure, external scheme(pic1)
internal structure, external scheme(pic2)
product specification
| type | PS-15 | PS-20 | PS-25 | PS-32 | PS-40 | PS-50 |
| usage fluid | steam, air, liquid, oil | |||||
| acting model | pilot type | |||||
| type | normal close or open type | |||||
| connecting diameter G | 1/2〃 | 3/4〃 | 1〃 | 11/4〃 | 11/2〃 | 2〃 |
| usage fluid viscosity | Below 20CST | |||||
| usage pressure Kg/cm2 | 0.04 MPa∽1.6 MPa | |||||
| max. compression resistance Kg/cm2 | 2.0 MPa | |||||
| working temperature ℃ | ≤200℃ | |||||
| rated voltage V | AC:380、220、110、36、24 DC:220、110、36、24、12 | |||||
| usage voltage range | -15%∽10% | |||||
| body material | forge brass | |||||
| oil-seal material | PTFE˙VITON | |||||
| isolation grade | B级grade | |||||
| L×H(mm) | 75×135 | 75×142 | 92×150 | 110×150 | 122×155 | 161×174 |
